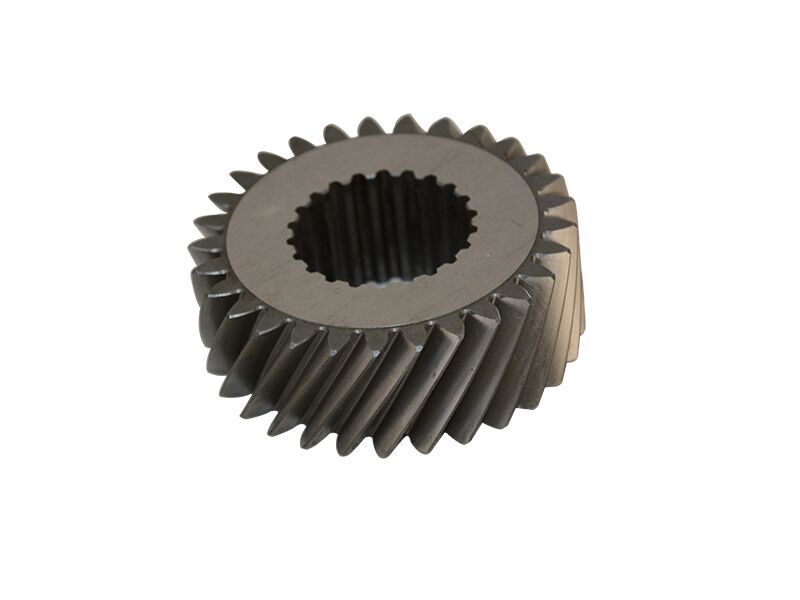

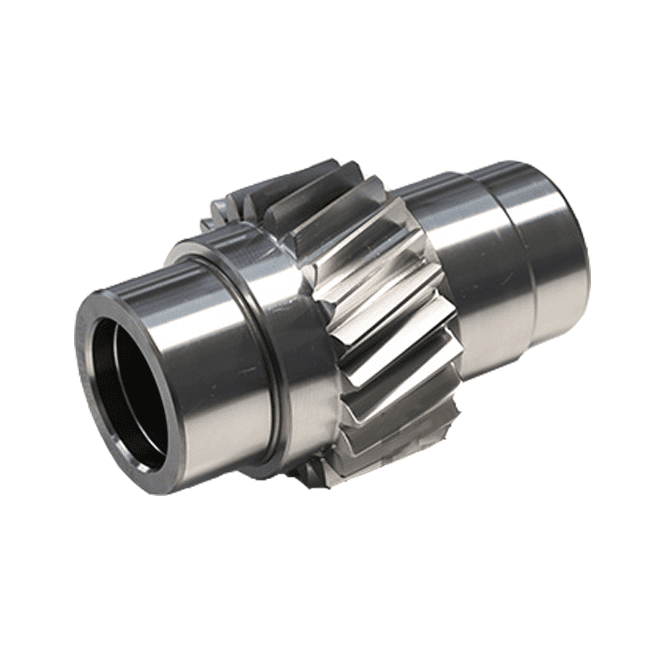

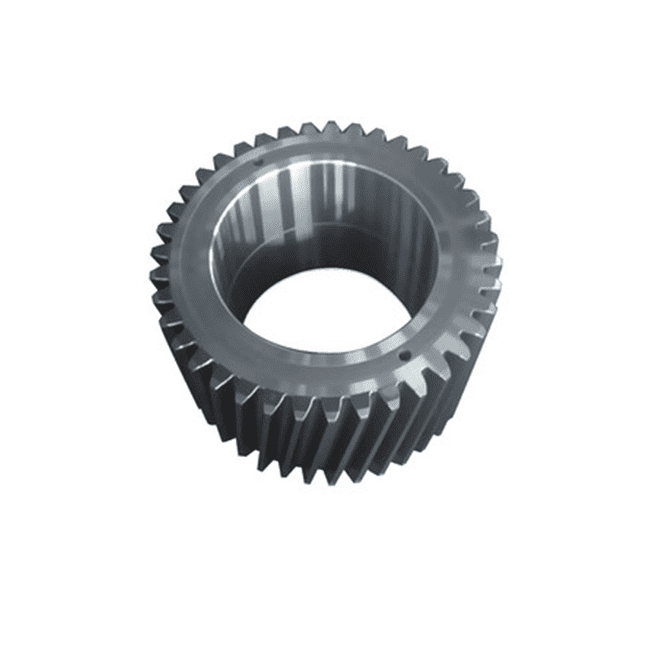

Helical Gear

Helical Gear can bear more load than spur gears, and work more quietly. They are widely used in industry. A disadvantage is the axial thrust force caused by the helix form.

Additional information

Max Machining Dia

10~1500mm

Max Grinding Dia

800 mm

Max Module

16

Accuracy

AGMA 13, DIN 4, ISO 4

What is Helical Gear?

Helical gear, the teeth are twisted oblique to the gear axis. Right-hand and left-hand helical gears mate as a set. But they must have the same helix angle.



Why Use Helical Gears?

  • Has higher strength compared with a spur gear.
  • More effective in reducing noise and vibration when compared with a spur gear.
  • Gears in mesh produce thrust forces in the axial direction.



What are Helical Gears used for?

Transmission components, automobile, speed reducers, mining, oil, wind power equipment etc.



How are Helical Gears Made?

Manufacturing proces: Forging or Bars → Quenching & Tempering → Rough Turning → Teeth Hobbing → Heat Treatment → Fine Turning → Teeth Grinding → Inspection



Beyond Gears OEM gear manufacturing services provide high-precision crafting to maximize functionality in powertrain/power transmission applications. Learn more about the different types of gear supplier services we can offer you.
