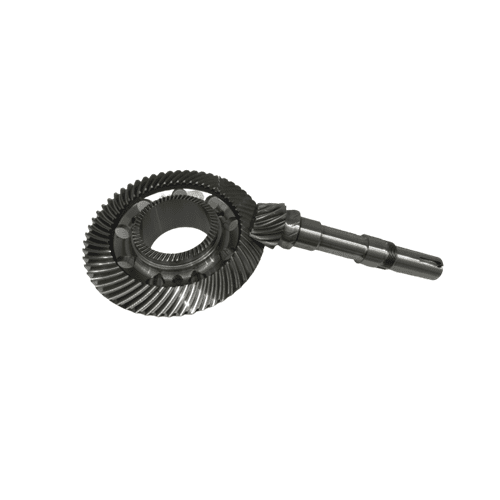

Spiral Bevel Gear is a bevel gear with a helical angle of spiral teeth. It is much more complex to manufacture but offers higher strength and less noise.
| Max Machining Dia | 2500 mm |
|---|---|
| Max Grinding Dia | 1600 mm |
| Max Face Width | 350 mm |
| Max Module | 35 |
| Accuracy | AGMA 13, DIN 4, ISO 4 |
Spiral bevel gear is bevel gear with curved, oblique teeth to provide gradual engagement and a larger contact surface at a given time than an equivalent straight bevel gear.
Due to their advantages: smooth and low-noise power transmission between non-parallel shafts at almost any angle or speed, spiral bevel gears are widely used in a variety of industries and mechanical operations, including aerospace & military, automobiles, tractors, vehicles, final reduction gearing for ships. Especially suitable for high-speed, heavy-load drives.
Manufacturing proces: Forging or Bars → Quenching & Tempering → Rough Turning → Teeth Milling → Heat Treatment → Fine Turning → Teeth Grinding → Inspection.
Beyond Gears OEM bevel gear manufacturing services provide high-precision crafting to maximize functionality in powertrain/power transmission applications. Learn more about the different types of spiral or straight bevel gear supplier services we can offer you.
With over 14 years of experience, Beyond gears support the further success of OEM clients with cost-effective manufacturing, processes, and premium service.
We are ready, Let’s talk today.
