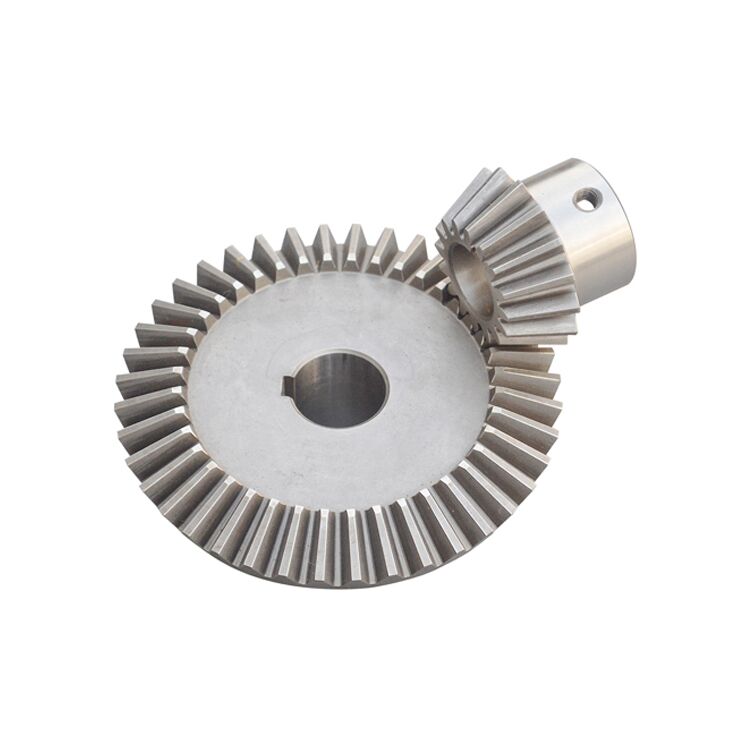

Straight Bevel Gear,a simple form of bevel gear having straight teeth which,if extended inward,would come together at the intersection of the shaft axes.
| Max Machining Dia | 2500 mm |
|---|---|
| Max Grinding Dia | 1600 mm |
| Max Face Width | 350 mm |
| Max Module | 35 |
| Accuracy | AGMA 12, DIN 5, ISO 5 |
Straight Bevel Gear is a gear in which the teeth have tapered conical elements that have the same direction as the pitch cone base line(generatrix). The straight bevel gear is both the simplest to produce and the most widely applied in the bevel gear family.
Machine tools, Printing presses, Mining Crusher, Cement Industry, etc. Especially suitable for use as a differential gear unit.
Manufacturing proces: Forging or Bars → Quenching & Tempering → Rough Turning → Teeth Forming → Heat Treatment → Fine Turning → Teeth Grinding → Inspection.
Beyond Gears OEM bevel gear manufacturing services provide high precision crafting to maximize the functionality in powertrain / power transmission applications. Learn more about the different types of spiral or straight bevel gear supplier services we can offer you.
With over 14 years of experience, Beyond gears support the further success of OEM clients with cost-effective manufacturing, processes, and premium service.
